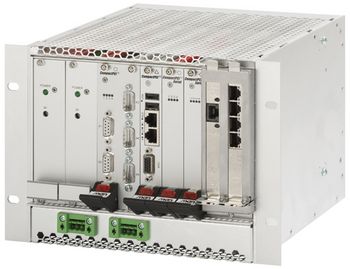

MH70I
Rugged Industrial PC with Intel Core i3 / i5 / i7

Main Features
- Compact 40 HP application-ready system
- Rack-mounted or wall-mounted
- Fanless operation or forced-air cooling
- Intel Core i7 or Celeron with standard HMI graphics
- Up to 16 GB DDR3 DRAM soldered, ECC
- Up to four SATA hard disks for a RAID
- Single or redundant power supply (AC or DC)
- 2 CompactPCI slots for fieldbus functions, RS232, analog I/O, digital I/O, Ethernet
- 2 CompactPCI Serial slots for SATA RAIDs, Ethernet
- 2 PCI or PCI Express slots for half-length cards
- Pre-configured operating system and drivers
Modular, Built-to-Order Configuration
The MH70I is a modular application-ready industrial PC which meets the requirements of any industrial environment, e.g., control stations for industrial automation. The PC offers a multitude of configuration possibilities which are built to order resulting in a fast time-to-market. The system comes with complete software support.
The Intel Core i7-based system consists of a modular 40 HP CompactPCI system which can be wall or rack-mounted. The system can be cooled by natural convection or using an additional fan tray at the bottom of the system. Cooling is independent of the mounting position.
Redundant Power Supply
The pre-configured system offers two PSU slots to ensure reliability and redundancy. Normal operation is guaranteed if at least one external voltage is present. AC or DC power supplies can be implemented.
Large Range of Functions
Two CompactPCI peripheral slots and two CompactPCI Serial peripheral slots as well as 2 PCI or PCI Express slots can accommodate a large range of functions. If the 2 PCI or PCI Express slots are not required, two additional CompactPCI Serial peripheral slots are available.
Possible functions of the MH70I include binary and analog process I/O or motion counters as well as COMs and fieldbus functions such as CANopen, DeviceNet, Real-Time-Ethernet (EtherCAT, EtherNet/IP, Modbus, POWERLINK, PROFINET, SERCOS, Varan) and PROFIBUS (master and slave for all functions).
The system always offers 2 Gigabit Ethernet interfaces at the front of the CPU board. For extending the Ethernet functionality, there is the possibility to implement up to 8 additional standard RJ45 or fiber optics Ethernet interfaces in the Compact PCI Serial slots.
PCI Express Mini cards for wireless functions such as WLAN and UMTS can also be provided. A SATA RAID can be built using up to four CompactPCI Serial hard disk carrier boards.
The two PCI or PCI Express slots can be equipped with half-length cards for further customized extension of the system.
Related Products
- CPCI 3U Board
- Configurable: yes
- Possible Configurations:
- Mass Storage
- SSD mSATA 3.x, 64 GB, MLC, -40°C to +85°C
- PSU 3U
- Configurable: yes
- Possible Configurations:
- Two separate power inlet connectors
- Normal operation if at least one external voltage is present
- CPCI 3U Board
- Configurable: yes
- Possible in CompactPCI peripheral slot: 3, 4
- 2 PCI Express Mini Card slots (USB), 2 SIM card sockets, 4 SMA connectors, -40°C to +85°C (carrier only)
- Possible Configurations
- MC7304 PCI Express MiniCard, full-size on USB: LTE, DC-HSPA+, HSPA+, HSDPA, HSUPA, WCDMA, GSM, GPRS, EDGE, and GNSS, -40°C to +85°C
- CPCI 3U Board
- Configurable: yes
- Possible in CompactPCI peripheral slots: 3 to 4
- 8 HP FPGA-based universal interface for direct connection of 2x CAN (first slot), 2x UART (second slot), -40°C to +85°C
- Possible Configurations
- CPCI 3U Board
- Configurable: no
- Possible in CompactPCI peripheral slot: 3, 4
- 8 serial interfaces via 78-pin D-Sub, RS232/422/485 hardware-configurable, -40°C to +85°C
- CPCI 3U Board
- Configurable: yes
- Possible in CompactPCI peripheral slot: 3, 4
- M-Module carrier board for 1 or 2 M-Modules, 0°C to +60°C
- Possible Configurations
- 16 analog voltage inputs, DC/DC converter, single-ended, -40°C to +85°C
- 8 analog voltage inputs, DC/DC converter, differential, -40°C to +85°C
- 16 analog current inputs, DC/DC converter, single-ended, -40°C to +85°C
- 8 analog current inputs, DC/DC converter, differential, -40°C to +85°C
- 4 analog current/voltage outputs, DC/DC converter, -40°C to +85°C
- 4 x 32-bit motion counter, 0°C to +60°C
- 32 digital inputs and/or outputs, 0°C to +60°C
- CPCI 3U Board
- Configurable: yes
- Possible in CompactPCI peripheral slot: 3, 4
- Possible Configurations:
- CPCI Serial 3U Board
- Configurable: yes
- Possible in CompactPCI Serial peripheral slot: 6, 7
- Possible Configurations
- CPCI Serial 3U Board
- Configurable: yes
- Possible in CompactPCI Serial peripheral slot: 6, 7, 8, 9
- Possible Configurations
- Half length PCI or PCI Express card
- Configurable: yes
- Possible in CompactPCI Serial peripheral slot: 8, 9
- Possible Configurations
- Third-party PCI or PCI Express card
- Dimensions:
- 210 x 175 x 225 mm max. without brackets
- 4U, 40 HP
- Mounting Possibilities
- Wall/flat surface
- Rack in 19" cabinet
- Two systems side-by-side to build a single 19" chassis
- Temperature range (operation): 0..+50°C according to EN 60068-2-1, EN 60068-2-2
- Temperature range (storage): -40..+85°C according to EN 60068-2-1, EN 60068-2-2
- Cooling concept
- Air-cooled, forced convection with fan tray at system bottom
- Relative humidity (operation): according to EN 60068-2-30, non-condensing
- Relative humidity (storage): according to EN 60068-2-30
- Altitude: -300 m to +3000 m
- Shock: according to EN 61373 category 1 class B
- Vibration: according to EN 61373 category 1 class B
- International Protection Rating (IEC 60529): IP20
- Electrical Safety
- EN 60950-1: Class I equipment
- Flammability (PCBs)
- UL 94 V-0
- EN 55022 class B (radiated and conducted emissions)
- EN 55024 (immunity)
- Windows Embedded Standard 7
- Linux
- Ubuntu with current LTIB kernel
Standard Models
It consists of the 40 HP basic system including backplane and mounting rails and provides:
- 2 slots for PSU 1 CompactPCI PlusIO slot for the CPU board
- 2 CompactPCI peripheral slots
- 2 CompactPCI Serial peripheral slots
- 2 PCI/PCIe slots or alternatively:
- 2 additional CompactPCI Serial peripheral slots
Contact duagon Sales for more information and for your detailed configuration.
