ME4
Fieldbus and Wireless LTE, MVB/CAN & Audio Module for Embedded Computer System
Main Features
- LTE Advanced via M.2
- 2 Micro-SIM card slots
- MVB, CAN bus or audio via PCIe Mini Card
- GNSS receiver
- Conduction cooling of M.2 and PCIe Mini Cards
- DIN rail, wall or 19" rack mounting
- -40 °C to +70 °C (+85 °C), fanless
Extension for Various Applications
The ME4 is a modular extension for embedded applications in transportation, e.g., in trains or wayside. The module adds wireless connectivity, fieldbus and audio functionality to the system CPU. Its main applications include predictive maintenance, IoT gateway, diagnostics server, smart vehicle, passenger information and ticketing systems.
Wireless Connectivity
The ME4 comes with one M.2 slot for high-speed LTE modems (LTE Advanced or LTE) providing two front-accessible micro-SIM card slots. For GPS/GLONASS functions, the box has an onboard GNSS receiver which can be connected via antenna connector.
Fieldbus and Audio Functionality

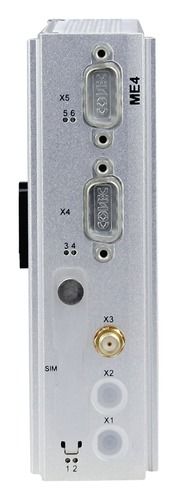

The ME4 is equipped with one PCI Express Mini Card slot prepared for an additional MVB, CAN bus or audio module. The functions can be made available on two D-Sub connectors at the front panel.
Modular System for Easy Configuration
Within duagon's modular concept, the ME4 offers flexibility in built-to-order configurations. Via its extension connectors, the box can be easily combined with duagon CPU modules or other extension modules, for example a PSU or removable storage shuttles, providing additional features and short delivery times.
In the modular system, data transfer between the modules as well as the power distribution between the individual components takes place via the duagon-standardized extension connectors.
Flexible System Installation
Various mounting options facilitate the integration of the box into an existing environment. The standard 35 mm DIN Rail mounting offers space saving mounting of all system modules on a single rail. Wall mounting and mounting in a 19" rack using adaption brackets are an option.
The aluminum housing with cooling fins allows for fanless operation. The ME4 is maintenance free without moving parts.
Rolling Stock Qualified and Long-Term Availability
The wireless and fieldbus module is qualified for rolling stock and wayside applications. Long-term availability ensures an extended product life and future-safety.
Related Products
- GNSS
- LTE
- CAN bus
- MVB
- Line-level input
- Line-level output
- This product includes interface options
- Different wireless functions depending on assembled wireless interface cards
- Wireless
- LTE (Main) antenna connector: 1 × Cutout
- LTE (Div) antenna connector: 1 × Cutout
- GNSS antenna connector: 1 × SMA receptacle (X3)
- M.2 Card
- 1 × M.2 Card slot
- M.2 3042 (LTE) socket 2 Key B; USB 2.0, USB 3.2 Gen 1x1
- PCI Express Mini Card
- 1 × PCI Express Mini Card slot
- PCIe Full-Mini; PCIe x1, USB 2.0
- SIM card
- 2 × micro-SIM slot, externally accessible
- LED
- Status: power status
- User configurable: 3 ×
- Cutout
- Antenna connector options: QLS receptacle, RP-SMA receptacle, SMA receptacle
- D-Sub options: audio, CAN bus, MVB
- Dimensions: (W) 38 mm, (D) 144 mm, (H) 132 mm
- Weight: 500 g approx.
- Mounting
- DIN rail
- Wall/flat surface
- Rack in 19" cabinet
- Cooling: Air cooling, natural convection, airflow 0.4 m/s
- Protection rating: IP20
- Operating temperature: -40 °C to +70 °C, +85 °C for 10 min (EN 50155:2017, class OT4, ST1)
- Equipment location: EN 50155:2017, location 2, cabin and interiors
- Rapid temperature variations: EN 50155:2017, class H1, no requirements
- Storage temperature: -40 °C (EN 50155:2017) to +85 °C (EN 60068-2-2, Bb)
- Altitude: +3000 m max. (EN 50125-1:2014, class AX)
- Pollution degree: EN 50124-1:2017, class PD3
- Humidity: +55 °C and +25 °C, 100 % RH max. (EN 50155:2017)
- Shock: 30 ms @ 50 m/s² (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B)
- Vibration: 10 min @ 2.02 m/s² (functional) and 5 h @ 11.44 m/s² (long-life) (EN 61373:2010/AC:2017-09, vehicle body, cat. 1, class B, double acceleration)
- Electrical safety
- EN 50155:2017
- EN 50153:2014 + A1:2017
- EN 50124-1:2017
- EN ISO 13732-1:2008
- Fire protection: EN 45545-2:2013 + A1:2015, HL3
- EMC emission
- EN 50121-3-2:2016 + A1:2019
- Regelung Nr. EMV 06 :2014-07-29, Anhang E: Messung an Geräten
- EMC immunity: EN 50121-3-2:2016 + A1:2019
- Protective coatings: EN 50155:2017, class PC2 (Any PCB protected on both sides)
- Useful life: 20 years (EN 50155:2017, class L4)
- Operating temperature: -40 °C to +70 °C (EN 50125-3:2003, class T2, cubicle, with class T2 maximum extended by 5 °C)
- Storage temperature: -40 °C (EN 60068-2-1:2007, Ab) to +85 °C (EN 60068-2-2:2007, Bb)
- Altitude: +3000 m max. (EN 50125-3:2003, class AX)
- Humidity: 100 % RH max. (EN 50125-2:2002, control cabinet, class T1/T2/TX)
- Shock: 11 ms @ 20 m/s² (EN 50125-3:2003, in a switch cabinet 1 m to 3 m from the track)
- Vibration: 2.3 m/s² (EN 50125-3:2003, in a switch cabinet 1 m to 3 m from the track)
- Electrical safety
- EN 50124-1:2017
- EN 62368-1:2014 + AC:2015
- EMC emission
- EN 50121-4:2016
- EN 61000-6-4:2007 + A1:2011
- EMC immunity
- EN 50121-4:2016
- EN 61000-6-2:2005
- EMC emission: ECE R10 Rev.5
- EMC immunity: ECE R10 Rev.5
- Operating temperature: 0 °C (EN 60068-2-1:2007, Ae, temperature value in compliance with 6.6 b) to +60 °C (EN 60068-2-2:2007, Be)
- Storage temperature: -40 °C (EN 60068-2-1:2007, Ab) to +85 °C (EN 60068-2-2:2007, Bb)
- Humidity: +55 °C and +25 °C, 90 % to 100 % RH (EN 60068-2-30:2005, Db)
- Electrical safety: EN 62368-1:2014 + AC:2015
- EMC emission
- EN 55032:2015 (multimedia equipment), class A (industrial environments)
- EN 61000-3-2:2014
- EN 61000-3-3:2013
- EMC immunity: EN 55024:2010 + A1:2015 (information technology equipment)
- Linux
- duagon Yocto BSP
- Tested with: duagon Yocto BSP (Kirkstone 4.0, Linux kernel 5.15); Lubuntu 18.04 X LTS
- Windows
- Windows 10 IoT Enterprise 64-bit
- Not all functions are supported
