13Z015-06 - MDIS5 low-level driver sources (MEN) for 16Z029_CAN (MSCAN/Layer2)

MDIS5 low-level driver sources (MEN) for 16Z029_CAN (MSCAN/Layer2)

Overview
Specifications
Software
...

Specifications
Software

Overview

13Z015-06: MDIS5 low-level driver sources (MEN) for 16Z029_CAN (MSCAN/Layer2)
File Name: 13sc24-77_iset - installset without mdis5 system package for windows.zip| Released: 06. October, 2020
ZIP| 31 MB
SHA1 Checksum: 3a963e506caaa60fd3eab9cd0c44835767f6769d
File Name: 13md05-70_13sc24-77 - installset with mdis5 system package for windows.zip| Released: 06. October, 2020
ZIP| 111 MB
SHA1 Checksum: 02d4c3ac7041028022392a70bb1826bf234a91f2
Licensing Information: Various licenses (may contain open-source software)
Costs: This article is free of charge.

Supported Products

02F215-UART, CAN Bus & Digital I/O Interface Board

02G215-UART, CAN Bus & Digital I/O Interface Board

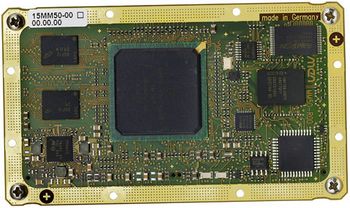

15MM50-ESMini COM with PowerPC MPC512x

15P506-Quad CAN Bus Interface PMC

02F012NPowerPC MPC5200B CPU Board

08EK06NESM Starter Kit with EM1N / MPC5200B COM

15EM01NEmbedded System Module COM with MPC5200B

15MM01-ESMini COM with Intel Atom

09BC50IRugged Box PC for Industrial Automation with AMD G-Series

09BL70SRugged Box PC for Transportation with Intel Core i3 / i5 / i7

09BL70WRugged Box PC for Transportation with Intel Core i3 / i5 / i7

09BC50MRugged Box PC for Transportation with AMD G-Series

09DC15-Rugged 10.4" Panel PC with Front Keys or Touch Screen

08SC24-AMD G-Series SBC for Control of Multiple 12" to 60" Displays

09BL50SRugged Box PC for Transportation with AMD G-Series

09BL50WRugged Box PC for Transportation with AMD G-Series

Specifications

Supported Operating System

Linux
VxWorks
QNX
OS-9

Supported Components

MEN IP core 16Z029_CAN
CAN controller inside MPC5121e/MPC5123
CAN controller inside MPC5200

Tested MEN Boards

EM1
EM1A
EM1N
EM4
EM4N
EM6, EM7
EM7N
EK2
EK4
EK5, EK5N, EK6, EK8
EK6N
F8, F11N, F12
F12N
F215
MM1
MM50
P506
PP1
RC1
The above list refers only to MEN standard products and may be incomplete. The driver may also support other MEN boards or board combinations not explicitly listed.

Features

Operates on direct CAN (layer 2) frames
Permits access to all features of the MSCAN CAN controller
Supports CAN Specification 2.0, standard and extended data and remote frames
Programmable global acceptance filter (mask and code), standard or extended
10 message objects with FIFOs (provided by driver)
Programmable acceptance filter for each RX object

Included Documentation

HTML documentation

Notes

This MDIS5 low-level driver is compatible with MDIS4 system packages.
Requires MDIS4 or MDIS5 system package

Main Software

13Z015-06: MDIS5 low-level driver sources (MEN) for 16Z029_CAN (MSCAN/Layer2)
File Name: 13sc24-77_iset - installset without mdis5 system package for windows.zip| Released: 06. October, 2020
ZIP| 31 MB
SHA1 Checksum: 3a963e506caaa60fd3eab9cd0c44835767f6769d
File Name: 13md05-70_13sc24-77 - installset with mdis5 system package for windows.zip| Released: 06. October, 2020
ZIP| 111 MB
SHA1 Checksum: 02d4c3ac7041028022392a70bb1826bf234a91f2

Related Software

10EM01-61: VxWorks 6.8 BSP for EM1A and EM1N Not available for download
Details
10em01-60.zip: VxWorks BSP (MEN) for EM1, EM1A, EM1N, EK6, EK6N, F12 and F12N Not available for download
Details
10em0140.zip: QNX 6.3 SP3 BSP (MEN) for EM1, EM1A, EM1N, EK6, EK6N, F12 and F12N Not available for download
Details
10em0141.zip: QNX 6.4.1 BSP (MEN) for EM1, EM1A, EM1N, EK6, EK6N, F12 and F12N Not available for download
Details
10em0142.zip: QNX 6.5.0 BSP (MEN) for EM1, EM1A, EM1N, EK6, EK6N, F12 and F12N Not available for download
Details
13m000-15: MDIS4 system package (MEN) for QNX
File Name: 13m000-15.zip| Released: 13. June, 2019
ZIP| 14 MB
SHA1 Checksum: f2e9239b5eb1ea48f490ad46e192058d4af38441 Details
13md05-60: MDIS5 System Package (MEN) for VxWorks
File Name: 13md05-60.zip| Released: 31. January, 2018
ZIP| 19 MB
SHA1 Checksum: c28db0cb4d3b933bf23f03ca3e8b38a0d3b8e0d5 Details
13md05-90: MDIS5 System Package (duagon) for Linux
File Name: 13md05-90.zip| Released: 26. April, 2021
ZIP| 14 MB
SHA1 Checksum: 2ca97e994170196729efec8858b63652b77df600 Details
13z015-70: MDIS5 Windows driver (MEN) for 16Z029_CAN (MSCAN/Layer2)
File Name: 13z015-70.zip| Released: 30. June, 2016
ZIP| 5 MB
SHA1 Checksum: 620a25f58bc1bcaa6ff4b4228ea1e33093a6463a Details
