Overview

13M077-60

VxWorks driver (MEN) for UART M-Modules, source code

File Name: 13p7c9-06.zip| Released: 13. August, 2013

ZIP| 63 KB

SHA1 Checksum: 560d6b75eaf2fe7649ae76e247eb16961773bc9c

Licensing Information

duagon-Germany-general-licensing-conditions.pdf
(PDF, 263 KB)

Costs

This article is free of charge.

Supported Products

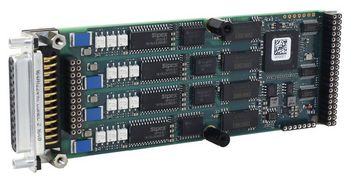

04M077NMezzanine Card with 4 UARTs

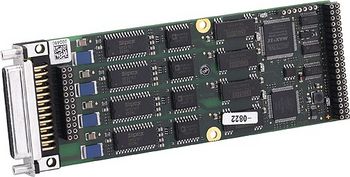

04M077-Quad RS232/RS422/RS485 UART

Specifications

Supported Operating System

• VxWorks 5.5
• VxWorks 6.2 to 6.9

Features

• VxWorks TTY driver conformance (open, close, read, write, ioctl)
• Programmable data rates from 300 baud up to 1.152 Mbaud (115.2 kbaud for RS232)
• Support of all channels
• 128-byte FIFO for each transmitter/receiver
• Software selectable 5 to 8 bits per channel plus parity
• Parity types: none, odd, even
• Software selectable stop bits: 1, 2
• Software handshake Xon/Xoff
• Multiple module support (definable at compilation time)
• Software configurable mode switch between RS232, RS422 and RS485

Note

The driver itself is not MDIS but is integrated in the MDIS build system. Therefore, the MDIS system package for VxWorks must be installed.

Included Documentation

PDF user manual available as separate download

Main Software

13M077-60

VxWorks driver (MEN) for UART M-Modules, source code

File Name: 13p7c9-06.zip| Released: 13. August, 2013

ZIP| 63 KB

SHA1 Checksum: 560d6b75eaf2fe7649ae76e247eb16961773bc9c

Related Software

13m077-02

OS-9/PPC SCF driver (MEN) for UART M-Modules

File Name: 13m077-02.zip| Released: 17. August, 2020

ZIP| 76 KB

SHA1 Checksum: 611812214096e40b0dbc6dd5d57d59a3dc811ab2 Details

13md05-60

MDIS5 System Package (MEN) for VxWorks

File Name: 13md05-60.zip| Released: 27. April, 2020

ZIP| 19 MB

SHA1 Checksum: c28db0cb4d3b933bf23f03ca3e8b38a0d3b8e0d5 Details

Documentation

M77N VxWorks User Manual
(PDF, 525 KB)
