PRODUCTS
Secure computer systems, I/O Devices, Security Gateways and Network Interface Cards for future-proof critical applications
At duagon, we supply products with security features for transport, medical and industrial application. Our structured development processes, with high quality and informative documentation practices as well as our understanding of security features, extensive experience in CPU module development with stable safety processes and IT protection, allow us to deliver our security products will all the necessary safety requirements already fulfilled.
SECURE NETWORK INTERFACE CARDS

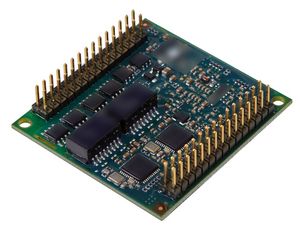

Dual Ethernet Interface Component
The D013E is a multi-purpose dual Ethernet controller interface with embedded processing power. The integrated Ethernet controllers, designed by duagon, feature hardware prioritization and very low jitter.
Downloads
Details
Features
- Hardware prioritisation within the duagon own Ethernet controller
- Proprietary high-performance UDP Stack (optimised for cyclic process data telegrams)
- Line redundancy handling
- Encapsulation of real-time Ethernet protocol stacks
- Secure configuration and diagnostics
- Device hardening and security services
- Freeing CPU power on the host system
- Space-saving through miniaturized form factor (48 x 50 x 10mm)
- Fitting modern CPU platforms - powered by 3.3V
- Fully compliant with IEEE 802.3, EN 50155, EN 50121, IEC 61373 and IEC 61375

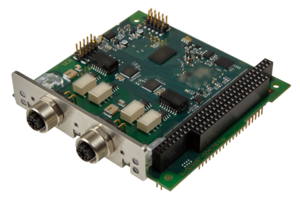

PC/104 Ethernet Interface
The D153E is a multi-purpose dual Ethernet Controller Interface with embedded processing power, designed for PC/104 host systems. The integrated Ethernet controllers, designed by duagon, feature hardware prioritization and very low jitter.
Downloads
Details
Features
- Proprietary Ethernet stack for process data prioritization with decreased data latency
- Support for most common real-time Ethernet protocols including EtherNet/IP – CIP, IPTCom, PROFINET and TRDP
- Secure configuration and diagnostics
- Device hardening and security services
- Optional full-featured 3-port switch and onboard bypass relays
- Support for redundancy protocols, e.g. RSTP
- Optional support for VLAN-tagged packets according to IEEE 802.1Q
- duagon web server for remote firmware updates
- -40 to +85°C operating temperature
Rail Security Gateways
Secure Gateway
The D517 is a secure Ethernet-to-Ethernet gateway. The integrated firewall implements a design-time configurable packet filter.
Downloads
Details
Features
- Secure Ethernet gateway with integrated firewall.
- Configurable Ethernet packet filter implemented in firewall, most settings can be managed by configuration file.
- Directly powered from the vehicle battery; supporting voltages ranges from 24V up to 110V.
RS485/RS422 to Ethernet Gateway
The D502 is an easy to configure Ethernet-to-RS485/RS422 gateway. It provides up to two RS485/RS422 interfaces (SER0 / SER1) as well as up to two 10/100 Mb/s Ethernet interfaces (ETH0 / ETH1). The Ethernet connectors comply with IEC 61076-2-101 (D-coded; female).
Downloads
Details
Features
- Proprietary high-performance Ethernet communication stack; optimised for cyclic process data.
- Support for most common real-time Ethernet protocols including IPTCom, EtherNet/IP – CIP, TRDP and TRDP with SDTv2.
- Optional redundant Ethernet interface.
- duagon secure web server for remote diagnostics and firmware updates; possibility to implement customer-specific web pages.
- Standard C development library to design customer-specific gateway application.
MVB to Ethernet Gateway
The D503 is an easy to configure Ethernet-to-MVB gateway. It provides a line redundant MVB interface as well as up to two 10/100 Mb/s Ethernet interfaces (ETH0 / ETH1). The Ethernet connectors comply with IEC 61076-2-101 (D-coded; female).
Downloads
Details
Features
- Proprietary high-performance Ethernet communication stack; optimised for cyclic process data.
- Support for most common real-time Ethernet protocols including TRDP, IPTCom and EtherNet/IP – CIP.
- Optional redundant Ethernet interface.
- Support for MVB devices up to class 4, including bus administrator functionality, process and message data.
- duagon secure web server for remote diagnostics and firmware updates; possibility to implement customer-specific web pages. Standard C development library to design customer-specific gateway application.
CAN to Ethernet Gateway
The D504 is an easy to configure Ethernet-to-CAN gateway. It provides up to two CAN interfaces (CAN0 / CAN1) as well as up to two 10/100 Mb/s Ethernet interfaces (ETH0 / ETH1). The Ethernet connectors comply with IEC 61076-2-101 (D-coded; female).
Downloads
Details
Features
- Proprietary high-performance Ethernet communication stack; optimised for cyclic process data.
- Support for most common real-time Ethernet protocols including TRDP, IPTCom and EtherNet/IP – CIP.
- Optional redundant Ethernet interface.
- duagon web secure server for remote diagnostics and firmware updates; possibility to implement customer-specific web pages.
- Standard C development library to design customer-specific gateway application.
Secure I/O Devices
Ethernet Remote I/O Module
The DIO021E is a remote I/O with 8 digital inputs, 2 digital outputs and 4 analog inputs, that is controlled via an Ethernet interface. All digital inputs can be used as PWM or event counter. The two digital outputs are isolated and allow bidirectional current flow.
Downloads
Details
Features
- 10 digital wide range I/O channels; 8 inputs and 2 outputs
- 4 analog inputs for current, voltage or resistive measurements
- Support for most common real-time Ethernet protocols including TRDP, IPTCom and EtherNet/IP – CIP
- Extension port for I2C, SPI and 1-Wire communication
- Coding pins for optional geographical addressing (7 bit)
- duagon secure web server for remote firmware updates
- -40 to 70°C operating temperature
Ethernet Digital I/O Module
The DXIO0808E is a remote I/O with 8 digital inputs and 8 combined input/outputs that is connected by an Ethernet interface. The combined inputs and outputs are software.
Downloads
Details
Features
- 8 inputs and 8 combined I/O channels, available as input, output or in mixed I/O mode
- Support for redundant output configurations without back-powering
- Configuration of I/O channels as PWM output, frequency or event counter input
- Support for most common real-time Ethernet protocols including EtherNet/IP – CIP, IPTCom and TRDP
- duagon web server for remote firmware updates
- -40 to +70°C operating temperature
DIN-RAIL SECURE COMPUTERS
DIN-Rail Computer with Intel Atom Processor for Rolling Stock
The MC50M is a modular computer for embedded applications in transportation, e.g., trains, buses or commercial vehicles. The computing platform features an Intel Atom E3900 series CPU with low power dissipation and scalability in performance and memory.
Downloads
Details
Features
- Intel Atom E3900 series
- Up to 8 GB DDR3 RAM with ECC
- Trusted Platform Module
- M.2 NVMe slot for storage
- Gb Ethernet, USB 3.2 Gen 1x1, RS232, RS485/422, DisplayPort
- DIN rail, wall or 19" rack mounting
- Input voltage 24 V DC nom. or 48 V DC nom. with ignition
- Full range power supply 16 V DC to 60 V DC
- EN 50155 compliant (railways)
- -40 °C to +70 °C (+85 °C), fanless
